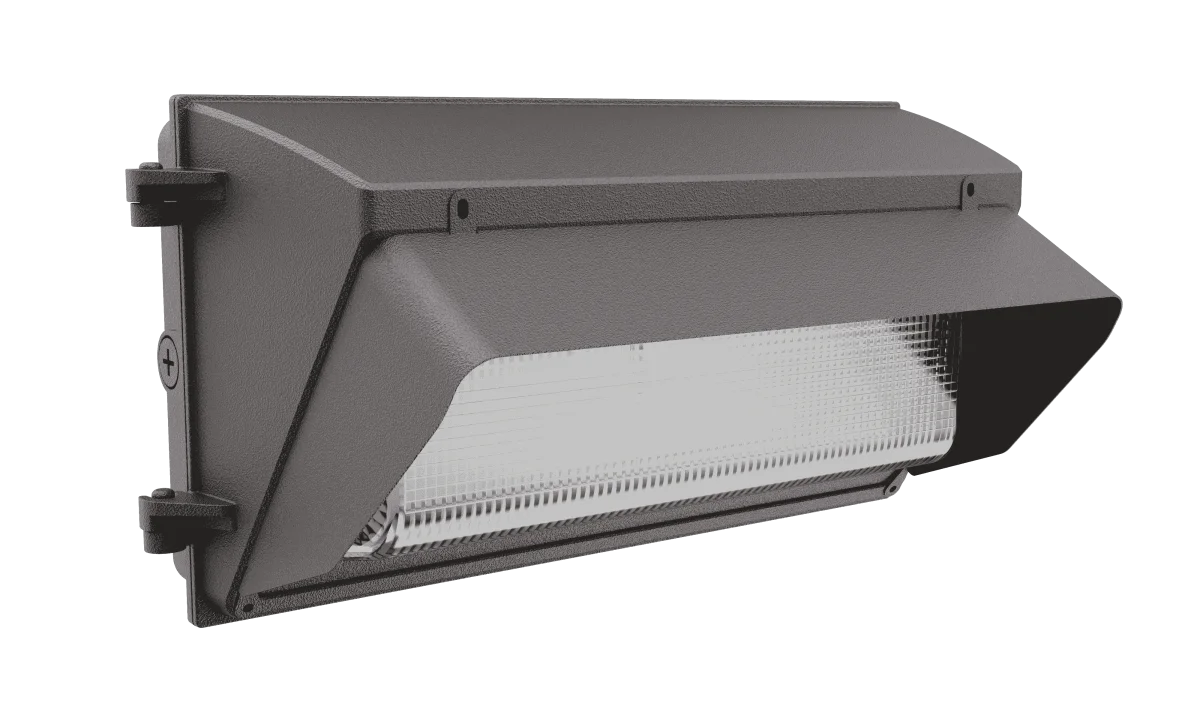

LED Semi-Cutoff Wall Pack – 18" – G1 Series

The 18-inch LED Semi-Cutoff Wall Pack G1 Series is a durable and highly flexible outdoor lighting fixture designed for commercial and industrial building exteriors. Its 3-in-1 DIP switch allows field selection of CCT (4000K/5000K/5700K), wattage (80W/100W/130W/200W), and photocell ON/OFF, enabling customization for different applications while reducing overall SKU inventory. Constructed from ADC12 die-cast aluminum, the fixture provides excellent heat dissipation and durability. Two lens options—borosilicate glass and polycarbonate—offer either ruggedness or a wider lighting distribution. Optional accessories include microwave motion sensor, glare shield, wire guard, and emergency driver. Rated IP65, UL & DLC certified, and delivering up to 150 lm/W, this semi-cutoff design is ideal for warehouses, factories, hallways, walkways, and outdoor commercial locations. Additional Specifications Electrical: LED Type: SMD2835 THD: <20% Power Factor: ≥0.90 Frequency: 50/60Hz Surge Protection: L/N 6kV L/N-P 6kV (40W versions have combined 4kV + 6kV protection) Environmental: Operating Temperature: −40°F to 113°F Lifetime: L70 @ 50,000 hours IP Rating: IP65 Construction: Housing: ADC12 Die-cast aluminum Lens Options: Borosilicate Glass Polycarbonate Finish: Bronze (default), optional colors via suffix codes Accessories: Glare shield Wire guard Microwave sensor (Zhaga receptacle) Emergency driver
