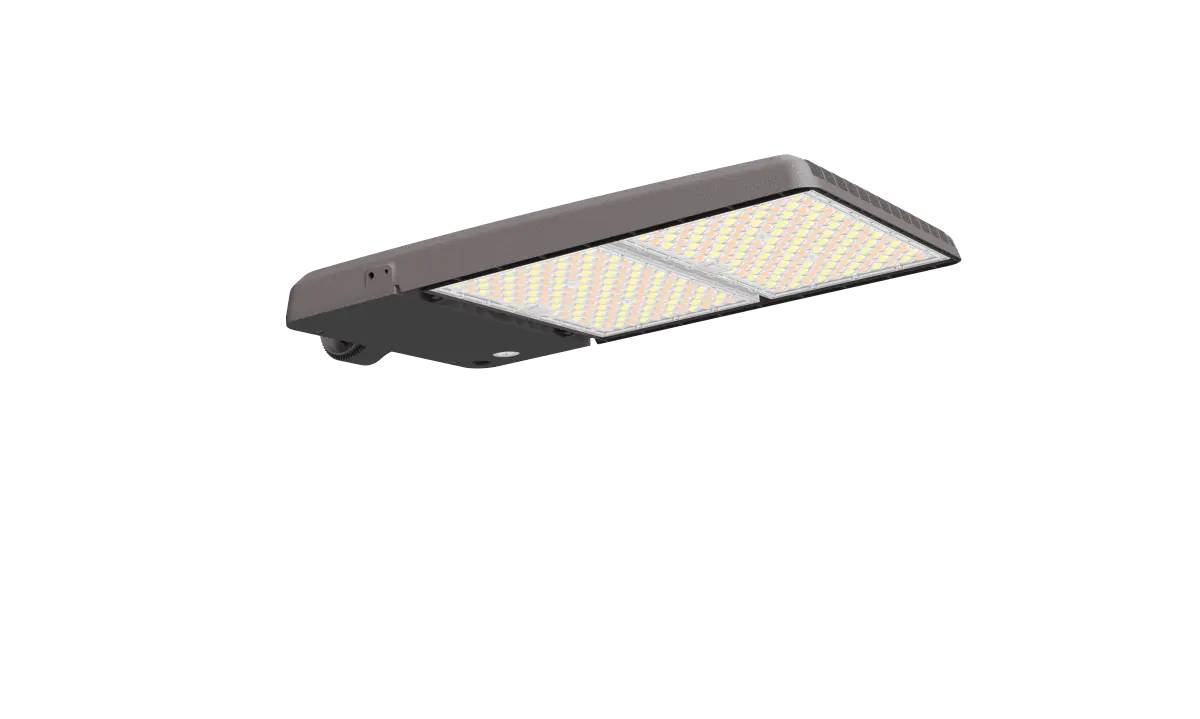

LED Area Light – G1 Series (500W – 5 Power + 3CCT Selectable)

The LED Area Light G1 Series provides exceptional illumination for parking lots, roadways, and general outdoor area lighting. With innovative optic swap capability, users can switch between T2 / T3 / T4 beam patterns using a tool-free latch lens system (Page 2 image). The integrated DIP switches allow 3CCT selection (4000K/5000K/5700K) and 5 wattage levels (300W–500W), making this fixture highly adaptable while minimizing SKU inventory. A robust die-cast aluminum housing ensures excellent heat dissipation even at high wattages. The unit supports photocell dusk-to-dawn, Zhaga or plug-in microwave sensors, and 7 different mounting brackets for maximum installation flexibility. This DLC Premium and UL-listed area light is ideal for medium-height parking lot poles and industrial outdoor lighting applications. Additional Specifications Electrical: LED Type: SMD2835 THD: <20% Power Factor: ≥0.90 Frequency: 50/60 Hz Surge Protection: L/N 6kV L/N-P 6kV Storage Temp: −40°F to 158°F Operating Temp: −40°F to 122°F IP Rating: IP65 Construction: Housing: Die-cast aluminum Lens: Polycarbonate Finish: Bronze (standard) Tool-free latch to swap optics Mounting brackets sold separately
